User Interface How To

Create Project

Once you're logged in to PIPES follow the below steps:

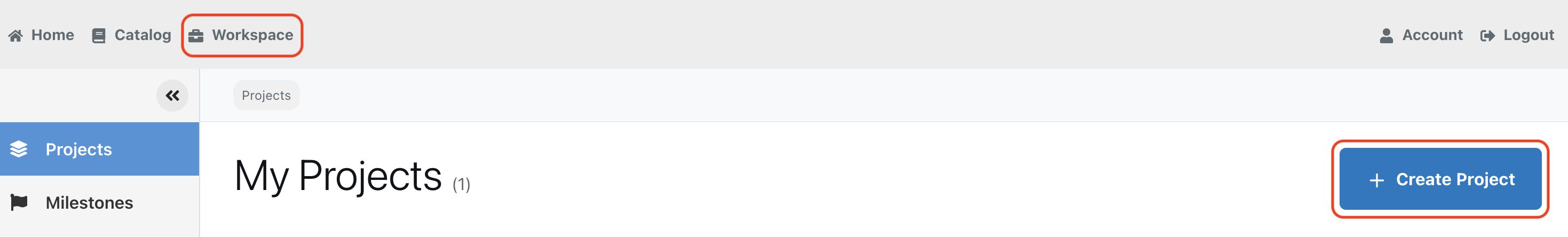

  1. Navigate to the Workspace page.

  2. Click the Create Project button.

  3. Fill in all the necessary information, pressing "Save & Continue" as you go.

  4. Once you are finished, review the information and click Create Project.
  5. After submitting, your project will show up under Projects in your Workspace.

For more descriptions on what information goes into a project, please see the Project Reference.

For more information on the project schema, please see the Project Config.

Create Project Run

  1. Select your project from the Workspace.

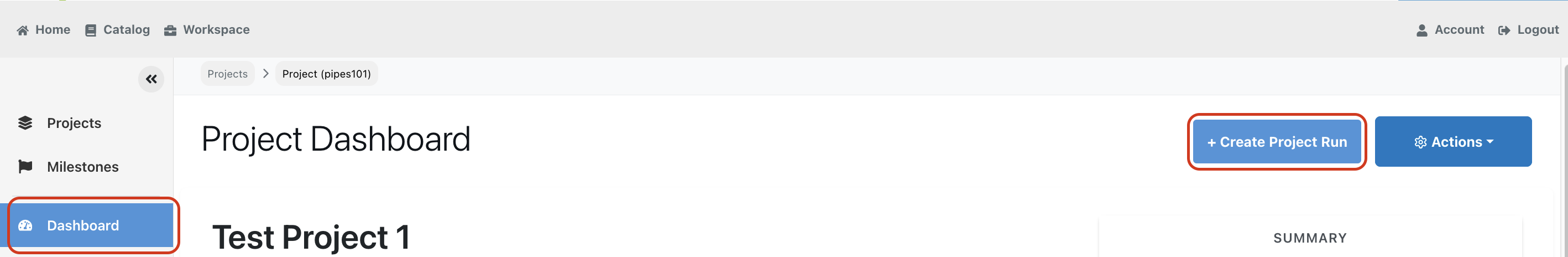

  2. Once in the Dashboard, click Create Project Run

  3. Fill in all the necessary information.

  4. Click Create Project Run.

This will take you back to the Project Dashboard which will now display your project run. From here, you can view this run and create more Project Runs as needed.

Create Model

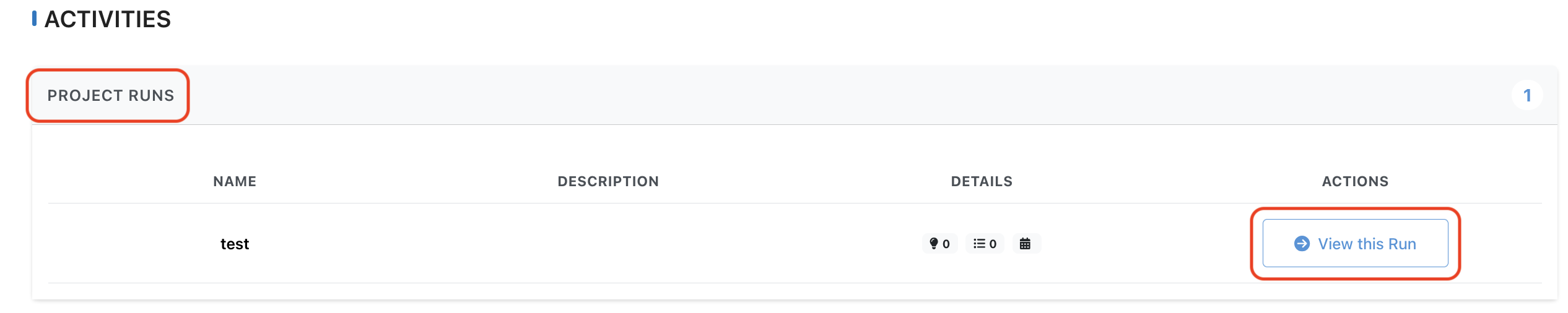

  1. From the Project Dashboard navigate to Project Runs and click View this Run for the one you would like to add a model to.

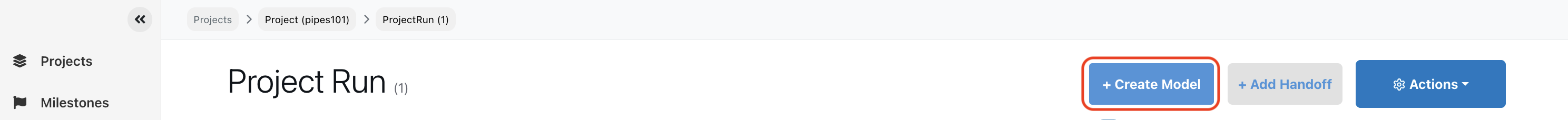

  2. Click the Create Model button.

  3. Verify that you are under the correct Project/Project Run then press continue.

  4. Fill in all the necessary information, pressing "Save & Continue" as you go.
  5. Once you are finished, review the information and click Create Model.
  6. After submitting, your model will show up under the Project Run.

This will take you back to the Project Run dashboard which will now display your model. From here, you can add more models and handoffs as needed.

Add Handoffs

  1. From the Project Dashboard navigate to Project Runs and click View this Run for the one you would like to add a handoff to.

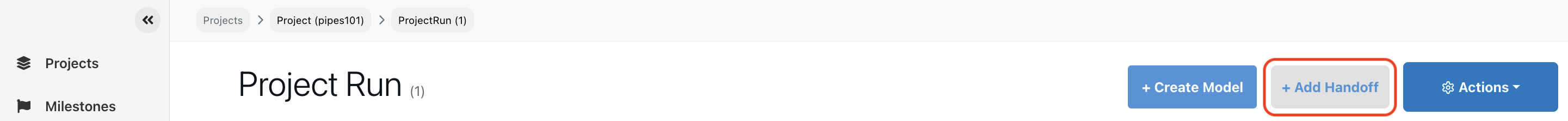

  2. Click the Add Handoff button.

  3. Fill in the necessary information then click Create Handoff. This will take you back to the Project Run dashboard which will now display your handoff. From here, you can add more models and handoffs as needed.

More

To create Model Runs and other operation items, please see the How To Guides for The API and The CLI. These features are still being developed on the UI.
